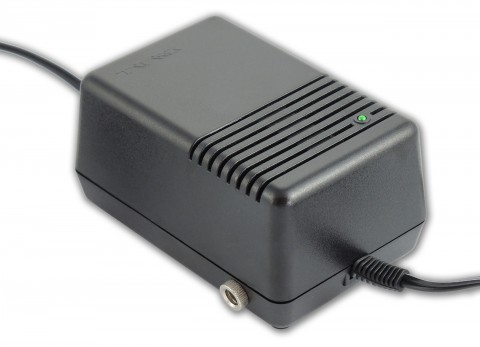

40 AC 12/1500 AC/AC voltage source 12V 1500mA
| Dostupnost: | Skladem |
| Max.prikon: | 55VA |
| Vstupni_napeti - nepouživat: | 230VAC |
| Vstupni_proud: | 125mA |
| Vystupni_napeti: | 12 V AC+-5% |
| Vystupni_proud: | 1500mA |
| Výrobce: | Format 1 spol. s r.o. |
Output for Iout = 0mA: 13,2VAC +-5%
OPERATING TEMPERATURE RANGE: 0 - 40 ° C
COVER COLOR: black or white/ according to order
WEIGHT: 1200 g
FLAMMABILITY CLASS: UL94 -V1
COVER PROTECTION LEVEL: IP30
INPUT CONNECTOR: Europa cord with grounding
OUTPUT CONNECTOR: type CP - MK, CT (straight or angular)/ according to order
OUTPUT CABLE: 2 x 0.50 mm2 length 2 m (AWG 22)
PACKAGING: box or bag
SAFETY REQUIREMENTS:
in accordance with standard PN-EN60065
Product meets RoHS requirements
CP end piece - straight, 2.10 x 5.50 mm
DP end piece - straight, 2.50 x 5.50 mm
FP end piece - straight, 1.50 x 5.50 mm
MP end piece - straight, 1.70 x 4.75 mm
CK end piece - angular, 2.10 x 5.50 mm
DK end piece - angular, 2.50 x 5.50 mm
FK end piece - angular, 1.50 x 5.50 mm
LK end piece - angular, 1.70 x 4.00 mm
MK end piece - angular, 1.70 x 4.75 mm
CT end piece - angular, 2.10 x 5.50 mm
